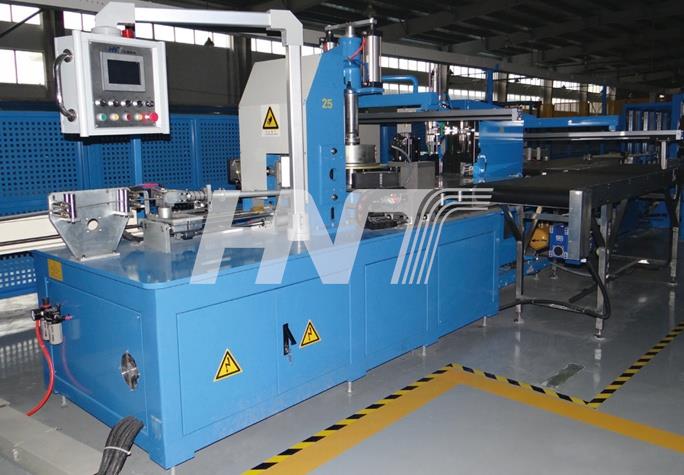

C1860B Fully Automatic Coiling and Binding Machine
Technical Description:
1. GC600 is mainly used for coiling and binding process of electric wires, it makes the finished coil tightly and goes to the next process easily.
2. Controlled by PLC and touch screen, easy to operate.
3. Adopt servo motor flat cable system, the appearance of finished coil is good.
4. 99 different wire size can be reserved in the PLC,when change the product size, just choose the size on touch screen it can produce immediately without inputting it again.
5. Binding tension is adjustable according to product charateristics.
6. Machine with auto fault detecting system, which will alarm when there is a problem.
Technical Parameters:
Wire Section | 6-35mm2 |
Production Speed | 200m/min |
Outer Dia. Of Coils | φ400-600mm |
Inner Dia. Of Coils | φ180-250mm |
Height Of Coils | 100-180mm |
Material Of Tie | PP |
Binding Points | Binding |
Packing Method | Hollow heat shrinking |
Power Supply | AC380V,3Phase,50Hz |
